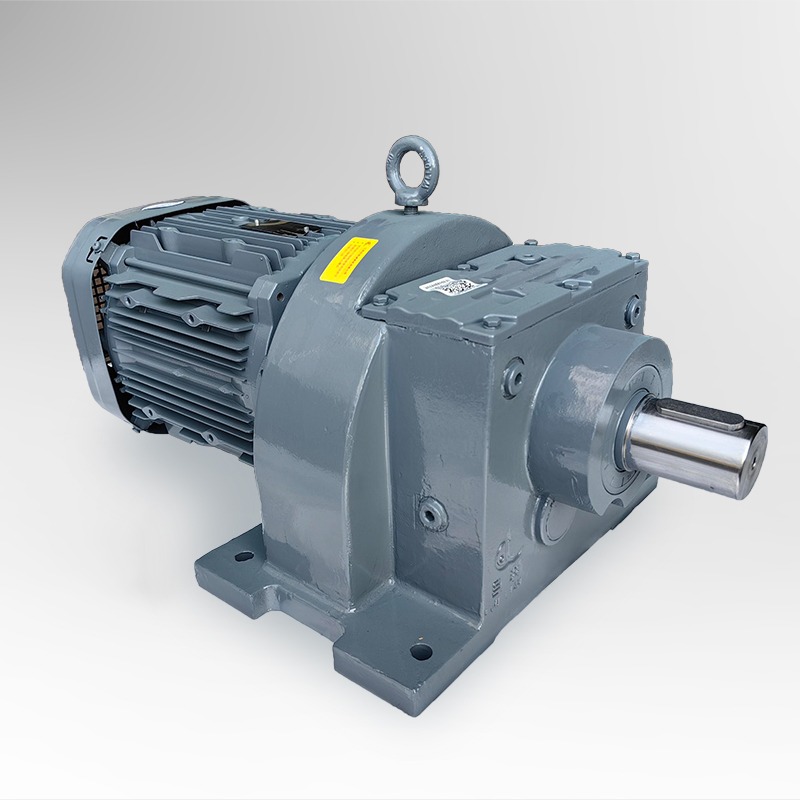

Custom JRWD3 Helical Gear Reducer Motor Suppliers, Factory

The high strength and reliability of this product benefit from the synergistic cooperation of various core components: Precision gears are made of 20CrMnTi gear steel, processed through carburizing, quenching and precision grinding; gear shafts are made of 20CrMnTi and undergo quenching and precision grinding; the housing is made of HT200 gray cast iron with a clean cavity process; the output shaft is made of 40CR and subjected to quenching and tempering heat treatment. These designs endow the product with high load-carrying capacity per unit volume and excellent structural strength, enabling it to stably adapt to high-load working conditions and perform reliably in various heavy machinery transmissions.

In terms of operational performance, the product achieves the dual advantages of low noise and high efficiency: Precisely machined gears and shaft components ensure smooth transmission; combined with low-noise and high-quality bearings from Luoyang Bearing or Wafangdian Bearing, the operating noise is significantly reduced. The motor adopts an efficient design with pure copper coils and cold-rolled silicon steel sheets, improving energy utilization efficiency. Among them, the reducer efficiency can reach 95%, and the efficiency in worm gear scenarios reaches 89%.

Long service life and easy maintenance are important features of the product. Through optimized materials and processes for key components such as gears, shafts and housings, under normal selection and maintenance, the service life of main components (excluding vulnerable parts such as lubricating oil, oil seals and bearings) can reach more than 25,000 hours. The motor's multi-layer insulation and dust-proof design enhances its durability and reduces the frequency of daily maintenance.

At the same time, the product has strong flexible adaptability with few restrictions on installation and arrangement. The motor can be adapted to different powers according to needs. Combined with a wide range of highly subdivided speed ratios (which can be combined to achieve large speed ratios and low output speeds), it can provide customized power solutions for various scenarios and adapt to working conditions with axial loads up to 5% of radial loads.

Mounting Arrangement	Definition
M1	Horizontally mounted motor; unit base is at bottom.
M2	Motor is vertically mounted downwards.
M3	Horizontally mounted motor; unit base is top.
M4	Motor is vertically mounted upwards.
M5	Horizontally mounted motor; if placed on M1 position, left side of unit turns to bottom (view point towards from motor side).
M6	Horizontally mounted motor; if placed on M1 position, left side of unit turns to top (view point towards from motor side).



Precision Gear Made of 20CrMnTi gear steel, gas carburizing and quenching fine grinding process, gear grinding accuracy of level 6, strong wear resistance, high hardness, high load-bearing capacity per unit volume	Gear shaft Made of 20CrMnTi gear steel, quenched and precision ground, with strong bearing capacity	Cabinet HT200 gray cast, high-strength cast iron, clean and burr-free inner cavity	Output shaft Made of 40CR material, tempered and heat treated, with high hardness and stronger bearing capacity

Bearings The brands are Luozhou or Wafangdian bearings, which have the characteristics of low noise, low friction, good load, and fast speed.	Motor Made of pure copper coil, silicon steel sheet cold rolled 800, low loss, high-temperature resistance, small temperature rise, strong power, a multi-layer primer layer of high-density molecular insulating paint, effective insulation and dustproof, strong durability and long life long

Reducer purchase instructions and delivery instructions
Model and appearance confirmation: Our store has many product models, and the webpage display pictures may differ from the actual product in color, appearance or partial structure.
About customization: Customized products do not support cancellation without quality problems, please place orders with caution.
Motor housing material description: The motor housing material (aluminum shell/iron shell) may be dynamically adjusted due to production batches, supply chain deployment or technical optimization. The actual material is subject to delivery, but the power and performance are strictly in line with the standards.
Product structure technical change description: The reducer housing and castings and other components may be adjusted due to technical upgrades, process optimization or functional improvements. The actual structure is subject to the actual delivery.

Warranty period 12 months.
